Sinbosen K4-1700 4 canais 2800 watts em 4 ohms amplificador de módulo de classe d digital profissional 1u

Item número.: K4-1700

Model: K4-1700
Channel: 4 channel power amplifier
Feature: 1U/Digital Amp/4CH/Class D/For Full Range Speaker
Output Power:
8Ω Stereo Power (RMS): 1700WX4CH
4Ω Stereo Power (RMS): 2800WX4CH
Certificate: CE, ROHS

MENSAGEM PDF Formato

Descrição

ATTENTION:
Normally rating power should be
Amp-power x 1.5 times compared to the power of the top speaker
and Amp-power x 2 times for the subwoofer.

To protect and extend your amplifier's working life, please don't use this amplifier under 2 ohms.
K series amplifiers are suited for Middle and High speaker, but not good for Subwoofer.

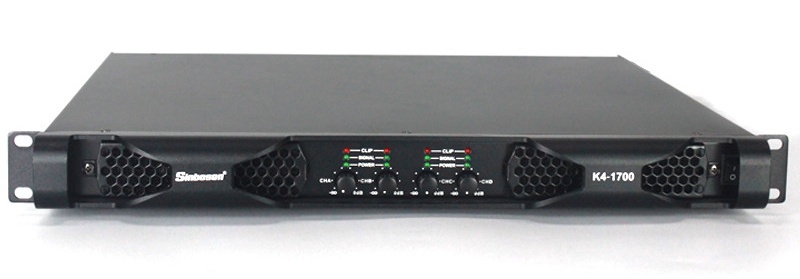

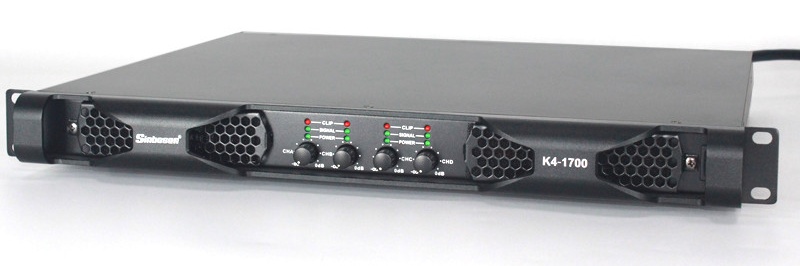

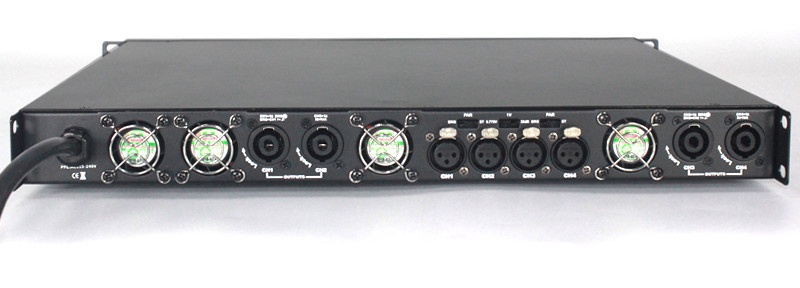

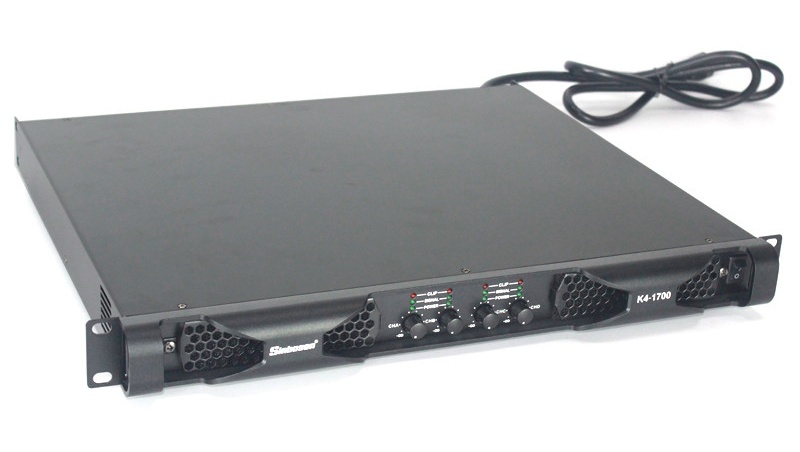

K4-1700 Digital Power Amplifier
K4-1700 1U 4-channel power amplifier, small size, lightweight, easy to install. The circuit uses a Class D power amplifier module, a reliable and efficient R-SMPS stabilized power supply system, which has extremely high efficiency and controllability, and also has extremely high power density, which can adjust the current waveform according to the AC voltage waveform. Wide voltage operation, adapts to the global scope, can carry higher power.

Digital Amplifier K4-1700 Feature:
1. Use a Class D power amplifier module. Unique peak clipping limiter and ripple reduction.
2. The perfect protection system effectively reduces the losses caused by improper use.
3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear.
4. 1U design, its lightweight and very small space occupation rate.
5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.


K4-1400	K4-1700		D4-3000		D4-2000 DSP		D4-3000 DSP
