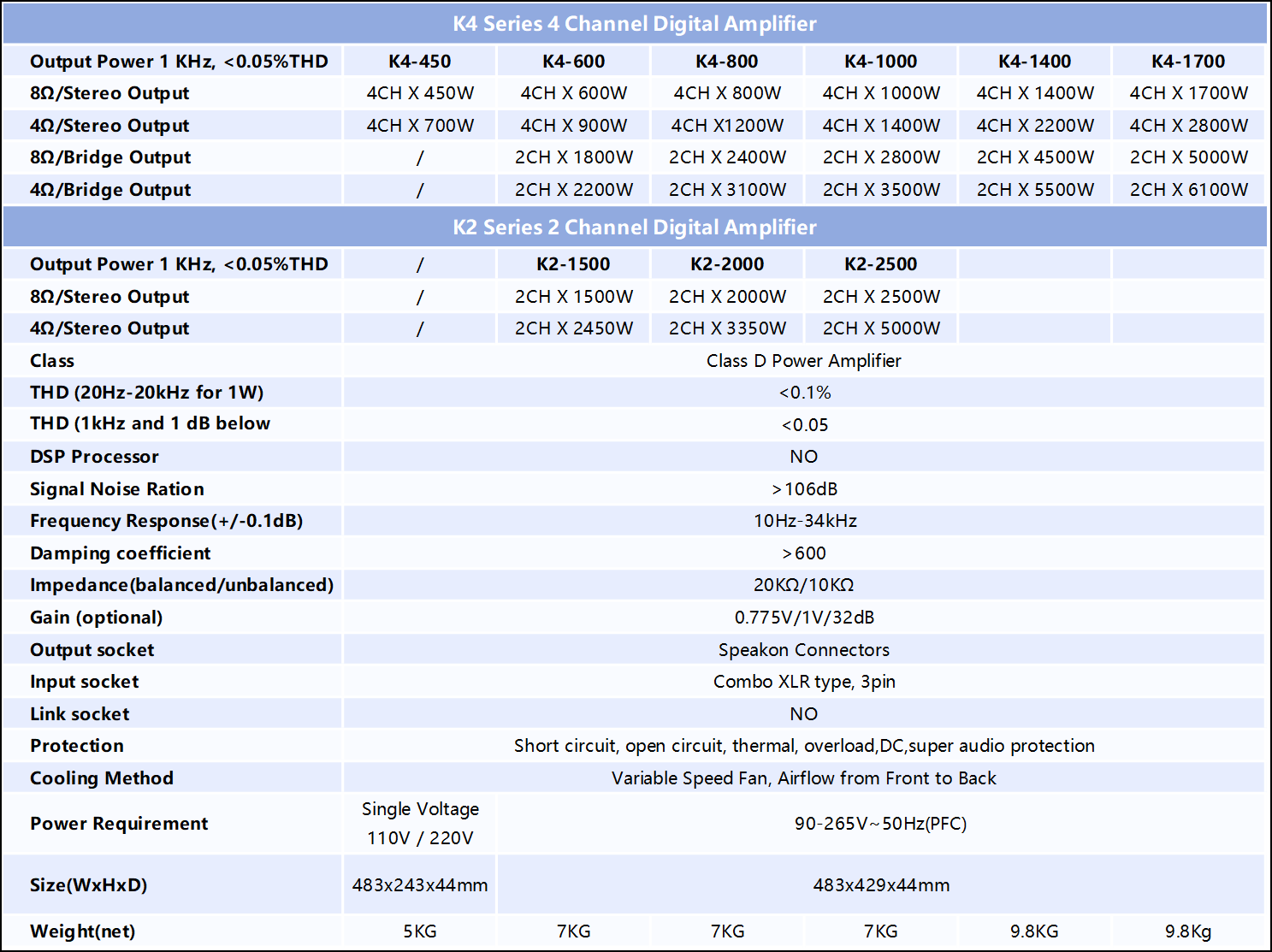

1U Digital Amplifier	K4-1000
Output Power 1 KHz, <0.05%THD	8Ω/Stereo    4CHX1000W 4Ω/Stereo    4CHX1400W 8Ω/Bridge    2CHX2800W 4Ω/Bridge    2CHX3500W
Class	Class D Power Amplifier
THD (20Hz-20kHz for 1W)	<0.1%
THD (1kHz and 1 dB below clipping)	<0.05
DSP Processor	NO
Signal Noise Ration	>106dB
Frequency Response(+/-0.1dB)	10Hz-34kHz
Damping coefficient	>600
Impedance(balanced/unbalanced)	20KΩ/10KΩ
Gain (optional)	0.775V/1V/32dB
Output socket	Spe akon Connectors
Input socket	Combo XLR type, 3pin
Link socket	XLR type,3pin male(NEUTRIK)
Protection	Short circuit, open dircuit, thermal, overload,DC,super audio protection
Power Requirement	90-265V~50Hz(PFC)
Size(WxHxD)	483x429x44mm
Weight(net)	9Kg

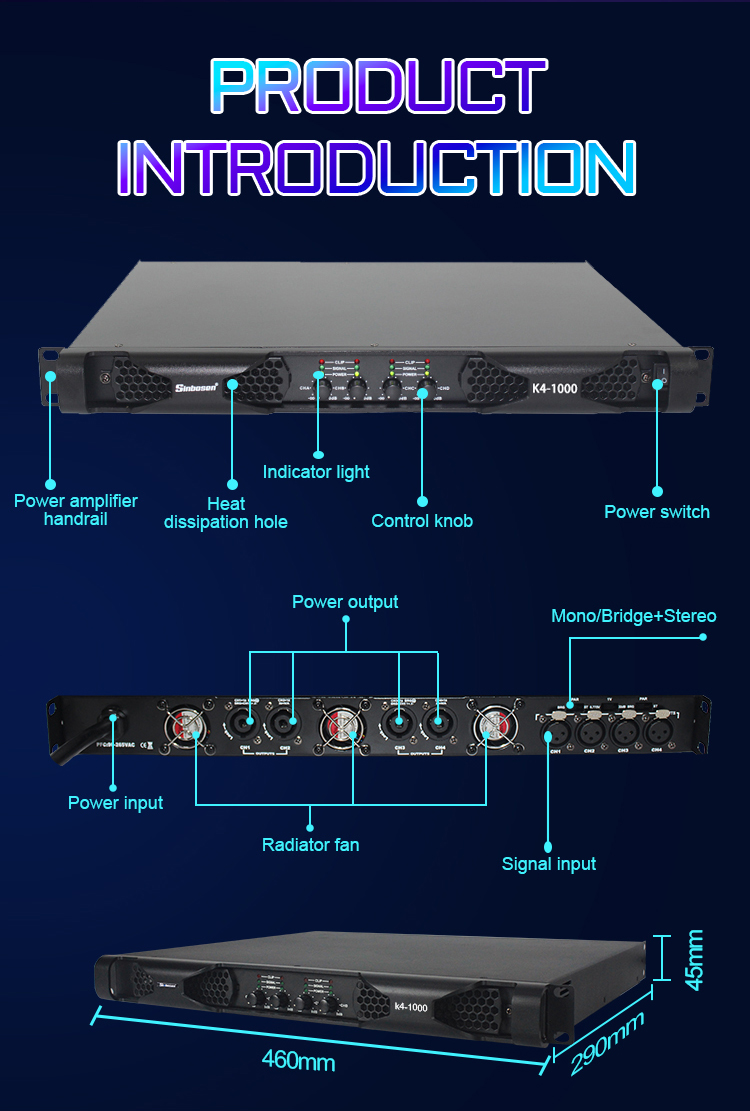

K4-1000 Digital Power Amplifier

K4-1000 1U 4-channel power amplifier, small size, light weight, easy to install. The circuit uses a Class D power amplifier module, a reliable and efficient R-SMPS stabilized power supply system, which has extremely high efficiency and controllability, and also has extremely high power density, which can adjust the current waveform according to the AC voltage waveform. Wide voltage operation, adapt to the global scope, can carry higher power.

Digital Amplifier K4-1000 Feature:

1. Use ClassD power amplifier module. Unique peak clipping limiter and ripple reduction.
2. The perfect protection system effectively reduces the losses caused by improper use.
3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear.
4. 1U design, its light weight and very small space occupation rate.
5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.

---
