Alto-falante passivo
Alto-falante de matriz de linha duplo equipamento de alto-falante de áudio de 8 polegadas KA208 3.0 sistema de som profissional
Item número.: KA208 3.0
Model ：KA208 3.0
Rated Power (RMS) LF: 450W ; HF: 100W
Nominal Impedance：LF: 8 Ohm or 16 Ohm
Sensitivity(1W/1m)db: 102dB (1w@1m)
Maximum Peak SPL: 142dB
Dispersion(-6dB): 110° Hor × 10° Ver
Finish:Polyurea coating
Rated Power (RMS) LF: 450W ; HF: 100W
Nominal Impedance：LF: 8 Ohm or 16 Ohm
Sensitivity(1W/1m)db: 102dB (1w@1m)
Maximum Peak SPL: 142dB
Dispersion(-6dB): 110° Hor × 10° Ver
Finish:Polyurea coating
Descrição
| KA208 3.0 Specification | |
|
Usable bandwidth (-10dB)
|
55 Hz - 20 kHz
|
|
Directivity
|
H: 70° / 90° / 110°
V: 10° |
|
Nominal directivity (-6dB)
|
Horizontal 110° symmetric
|
|
Vertical: Dependent upon number of elements and line source curvature
|
|
|
Maximum Peak SPL
|
142 dB
|
|
RMS handling capacity
|
LF: 450 W HF: 100 W
|
|

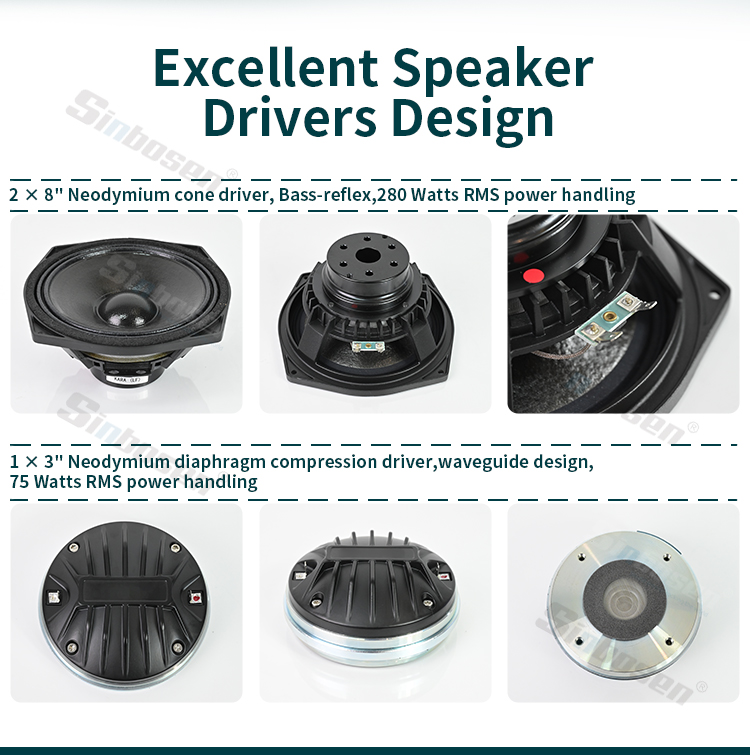

Components LF: 2 x 8’’ neodymium weather-resistant
|
|
|
HF: 1 X75mm neodymium diaphragm compression driver
|
|
|
Nominal impedance: LF = 8 ohms or 16ohms, HF = 8 ohms
|
|
|
Dispersion(-6dB)
|
110° Hor × 10° Ver
|
|
Component Configuration
|
LF: 2 * 8 inch HF: 1 X75mm
|
|

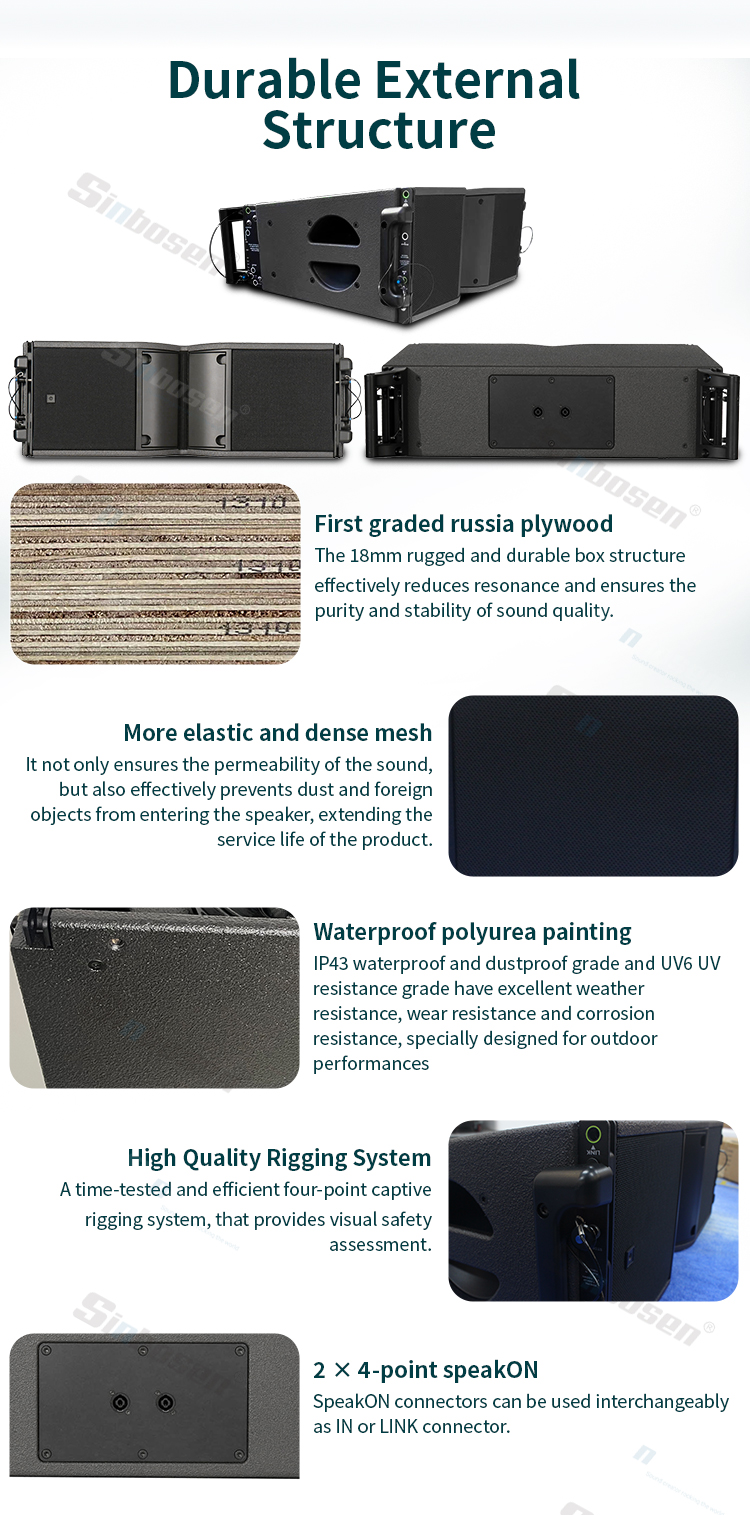

Cabinet
|
Plywood with polyurea coating
|
|

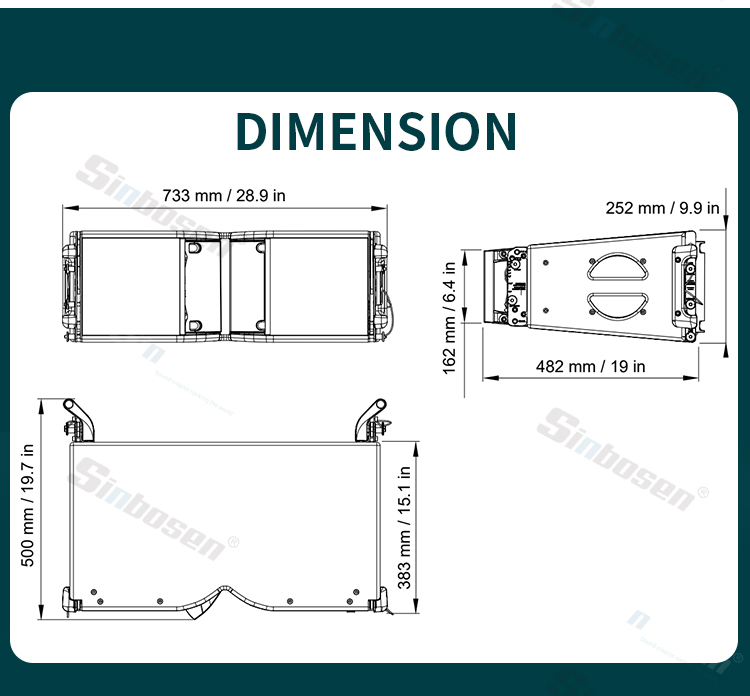

Dimension (W x H x D)
|
733 x 252 x 482 mm
|
|
Weight (net)
|
26 kg
|
|
Connectors
|
2 x 4 Neutrik SPEAKON
|
|
Material
|
Birch plywood
|
 |
 |
 |
| 8 inch LF（1） | 8 inch LF（2） | 75mm HF |
 |
 |
 |

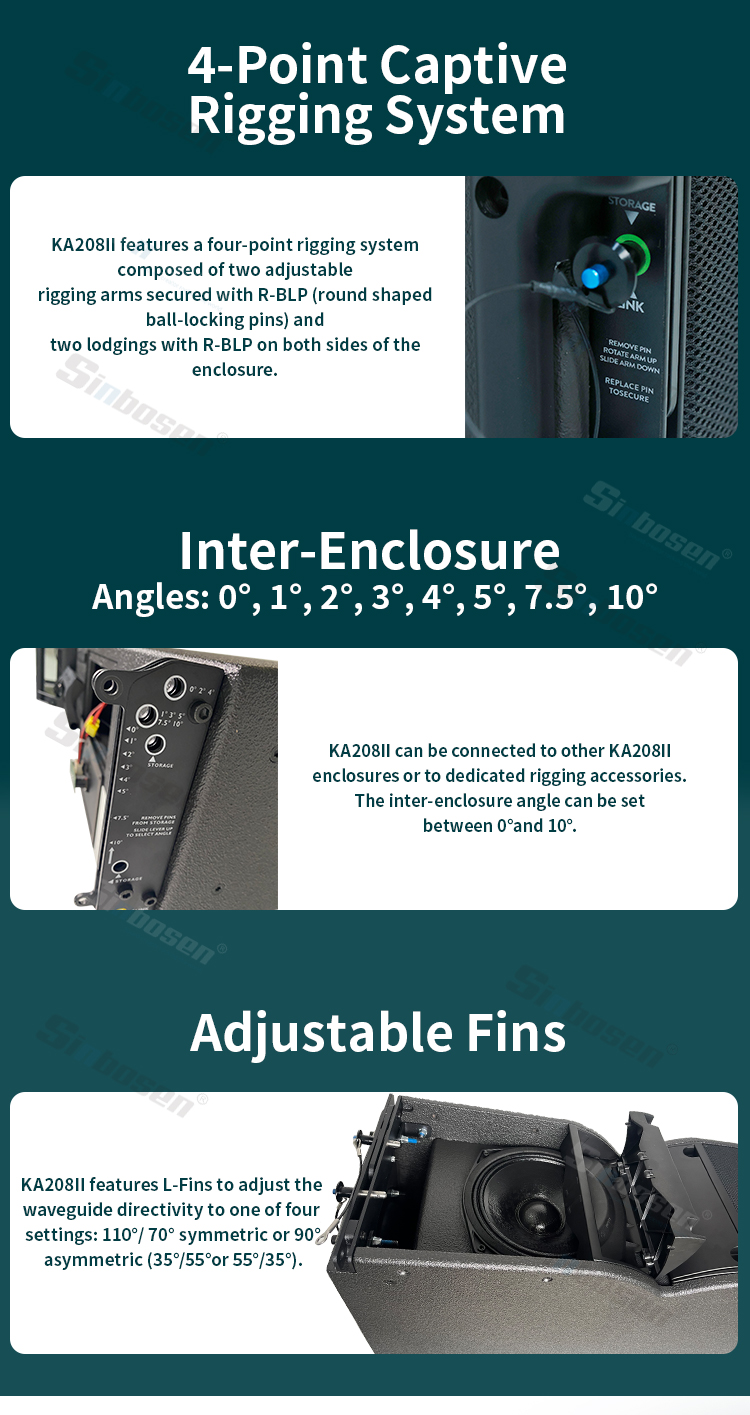

| Rigging Detail | Rigging Detail | Rigging Detail |

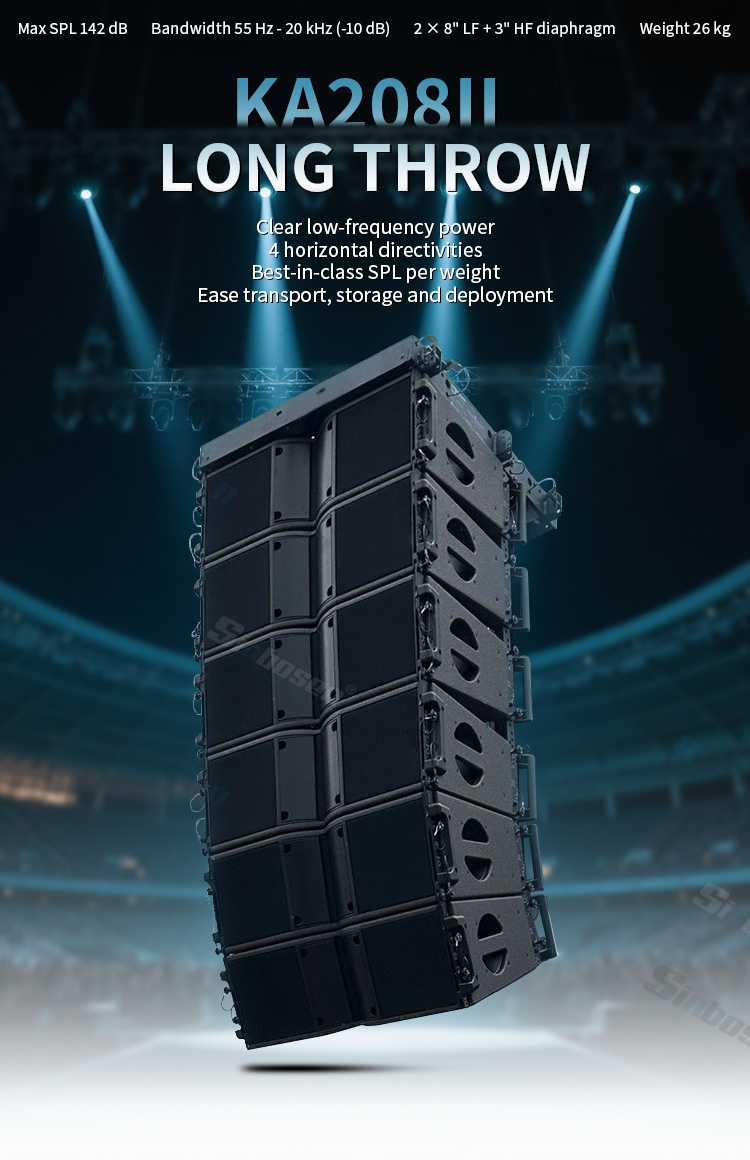

► Feature of KA208 3.0
| ●Best-in-class SPL per weight and footprint |
| ●4 horizontal directivities |
| ●Clear low-frequency power |
| ●KA208 is designed to simplify shipping, storage and deployment |
| ●Ideal for applications that require clarity and distance capability, such as performing arts, rallies, large corporate or special events |
► Feature of KA208 Ⅱ
On the basis of KA208, FINS is added, which can adjust the coverage angle
► FACTORY VISIT

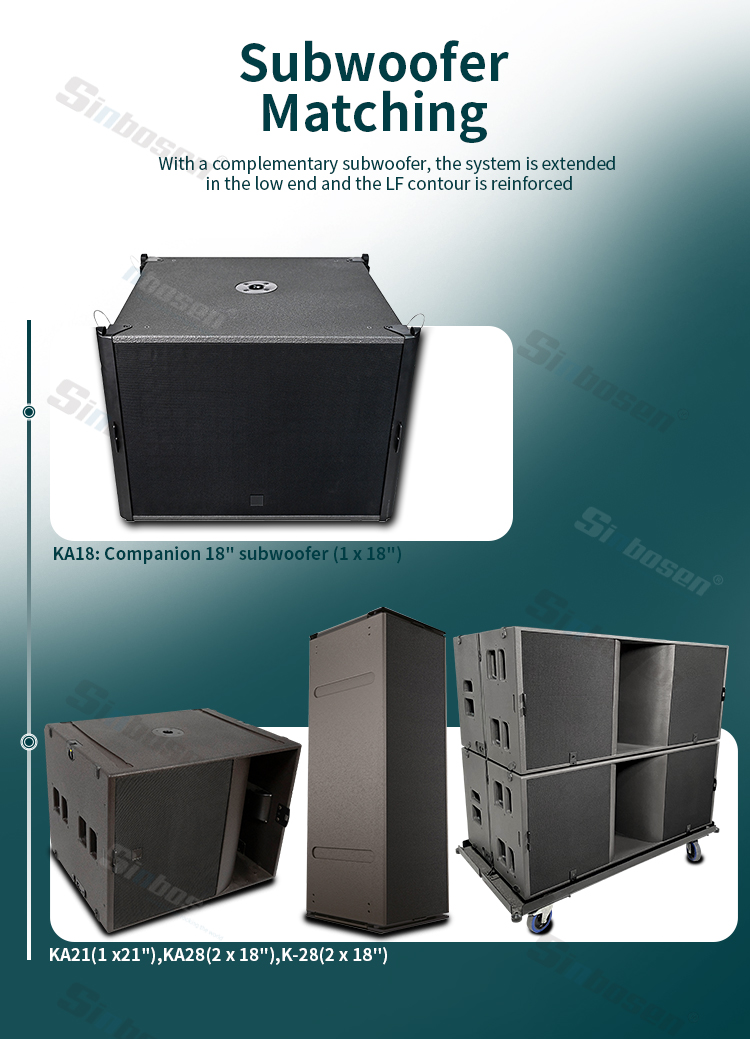

Suggest Matching
 |
 |
 |
||
