Amplificador de potência Sinbosen FP10000Q para 4 alto-falantes duplos de 15 polegadas

Item número.: FP10000Q

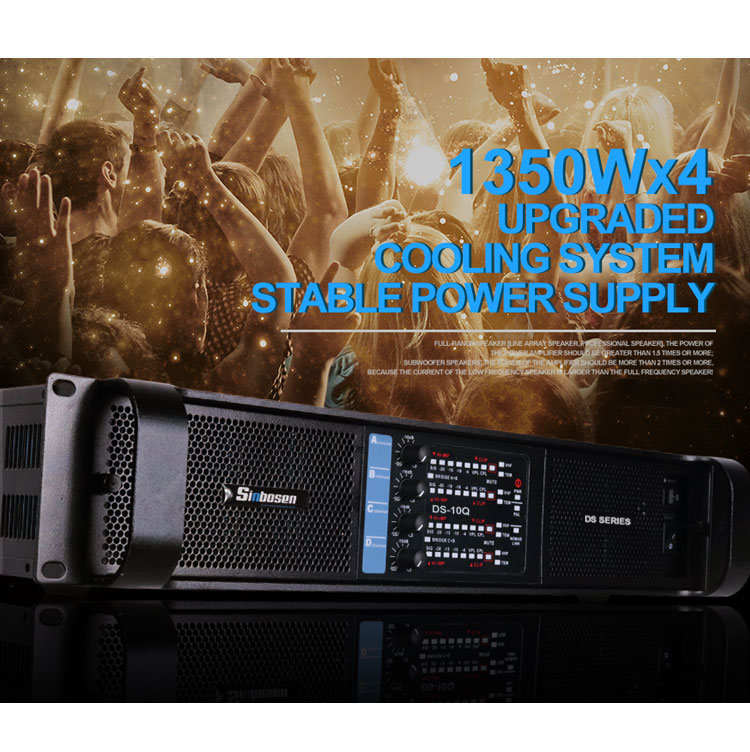

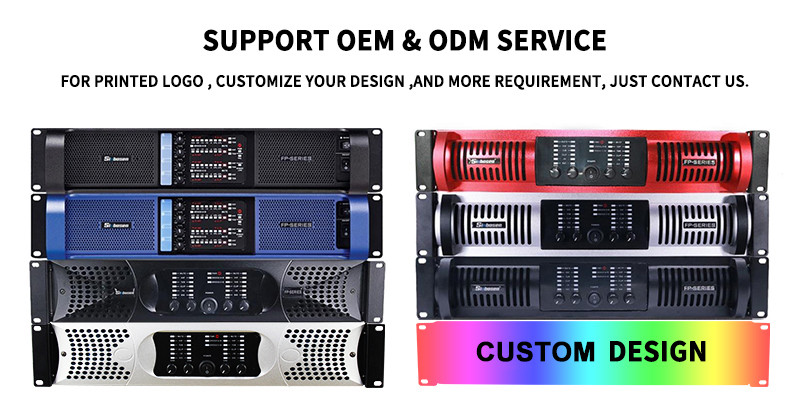

Modelo: FP10000Q Canal: 4 canais amplificador de potência Potência de saída: 8Ω Stereo Power (RMS): 1.350WX 4CH 4Ω Stereo Power (RMS): 2.100WX 4CH Classe: TD Certificação: CE, ROHS, TUV Garantia: 3 anos Serviço especial: OEM serviço oferecido

MENSAGEM PDF Formato

Descrição

Note: The red bridge module on the rear panel in the video is actually shipped in blue (as shown in the main and detailed diagrams of the rear panel. But in fact they are the same, just in different colors)

**Sinbosen Audio FP Series Amplifier**
	FP10000Q	FP9000	FP14000	FP6000Q	FP7000	FP20000Q	FP22000Q
8 ohm Stereo Power (RMS)	1350WX4	1800WX2	2400WX2	700WX4	1500WX2	2200WX4	2500WX4
4 ohm Stereo Power (RMS)	2100WX4	3000WX2	4400WX2	1300WX4	2800WX2	4000WX4	4650WX4
8 ohm Bridged Power (RMS)	4200WX2	6000W	8800W	2500WX2	5600W	8000WX2	9300WX2
4 ohm Bridged Power (RMS)	5000WX2	9000W	14000W	3000WX2	7000W	9000WX2	15000WX2
Frequency Response(+o/-0.3dB,1W/8Ω)：	20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1W:	<0.1%
Signal-to-Noise Ratio:	>112 dBA
Channel separation (Crosstalk) at 1 kHz ：	>70 dB

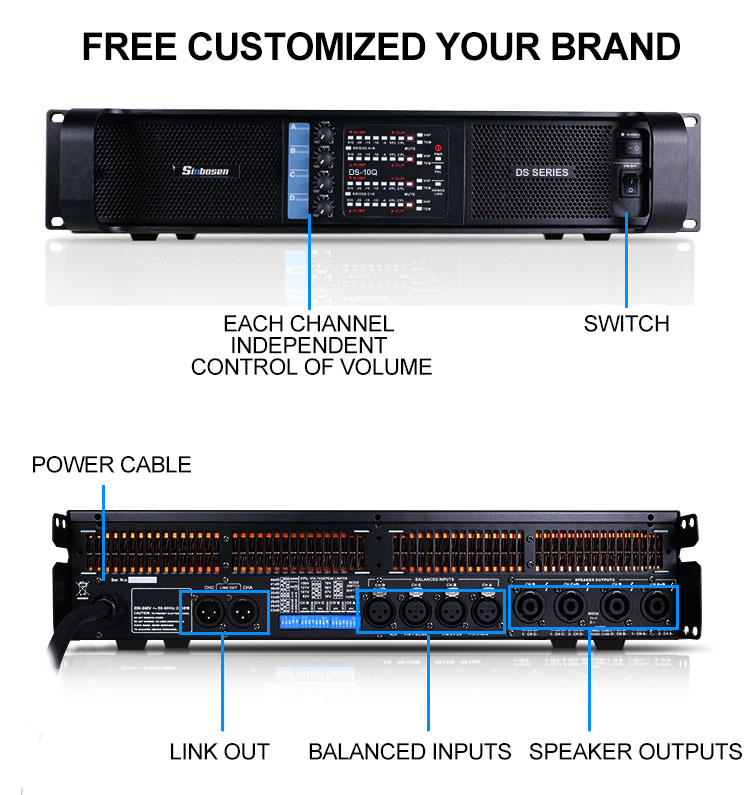

Input Connectors (per channel)：	3 pin XLR, electronically balanced
Output Connectors (per channel)：	Binding Posts 2-pole
Class：	TD
TourClass Protection：	ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 220V / 110V nominal：	180-240 V / 90-130 V selectable
Voltage Gain(dB)：	23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance：	20 kOhm
Level adjustment (per ch.)：	Front panel potentiometer, 31 positions detented from -inf to 0 dB

►4 Channel Class TD Switching power amplifier.
►4*2100 Watts into 4Ohms,4*1350 Watts into 8Ohms.
►Creat SUPER sound quality,good for single15"/dual15" speaker.
►Separately controllable on Gain
►Scalable Voltage Peak Limiter (VPL)
►Bridge-mode operation for Touring Applications

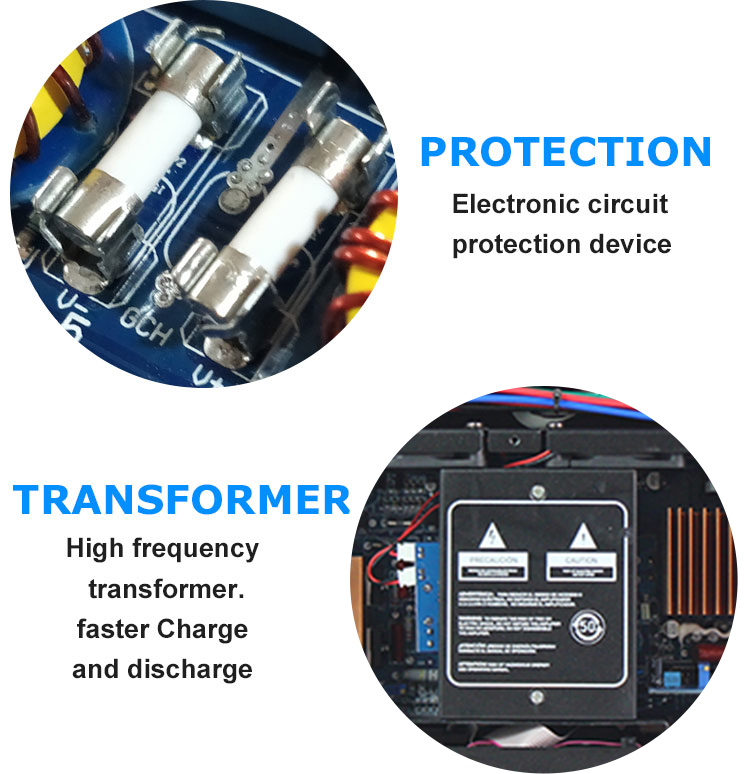

►Comprehensive protection scheme

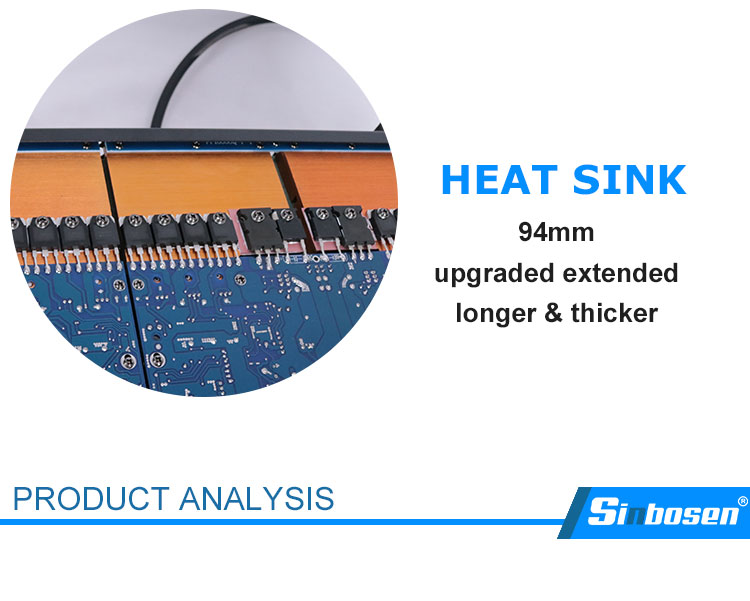

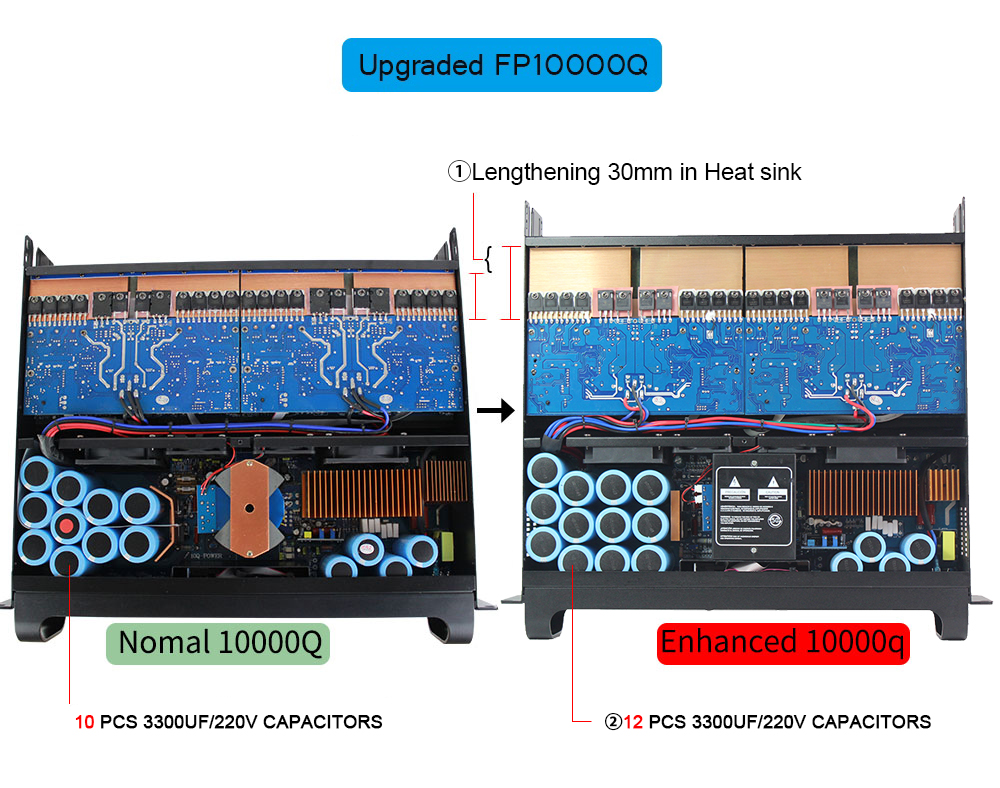

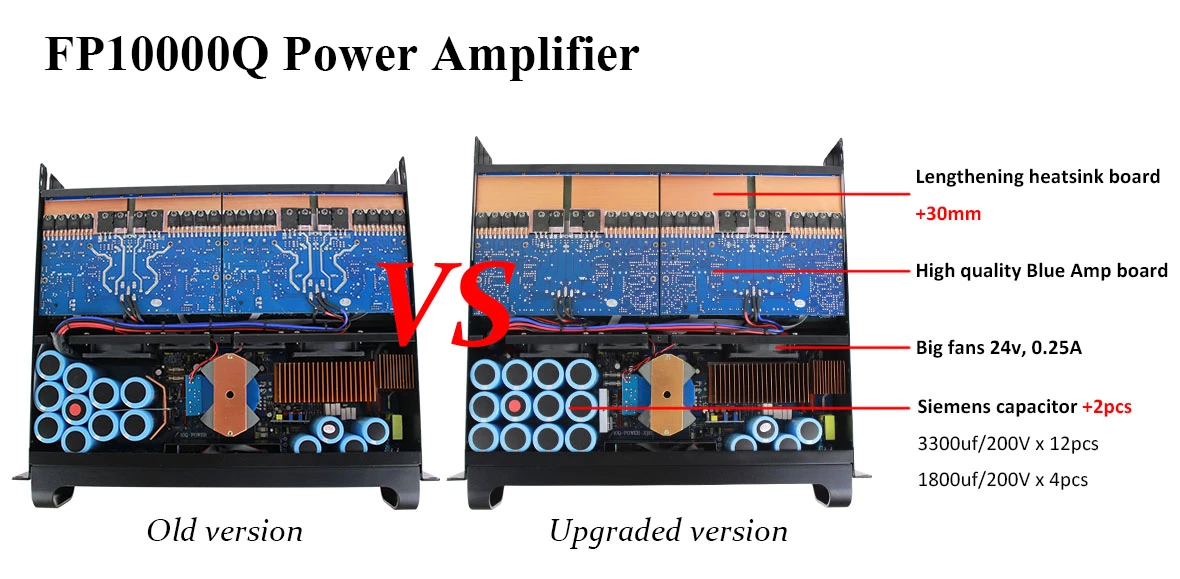

►Extended heatsink to 69 mm.

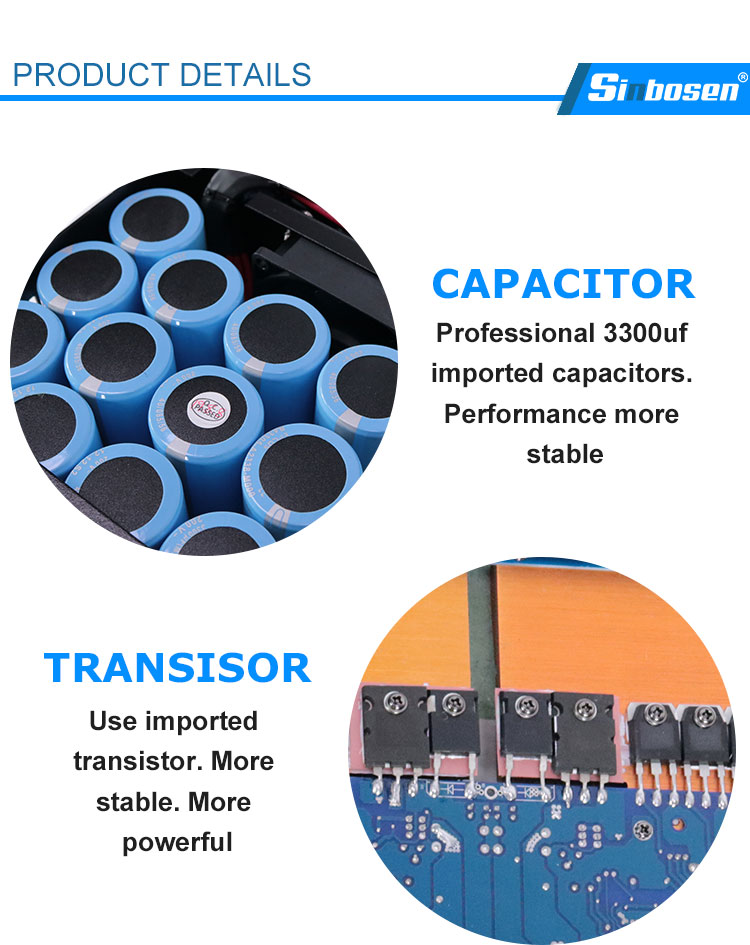

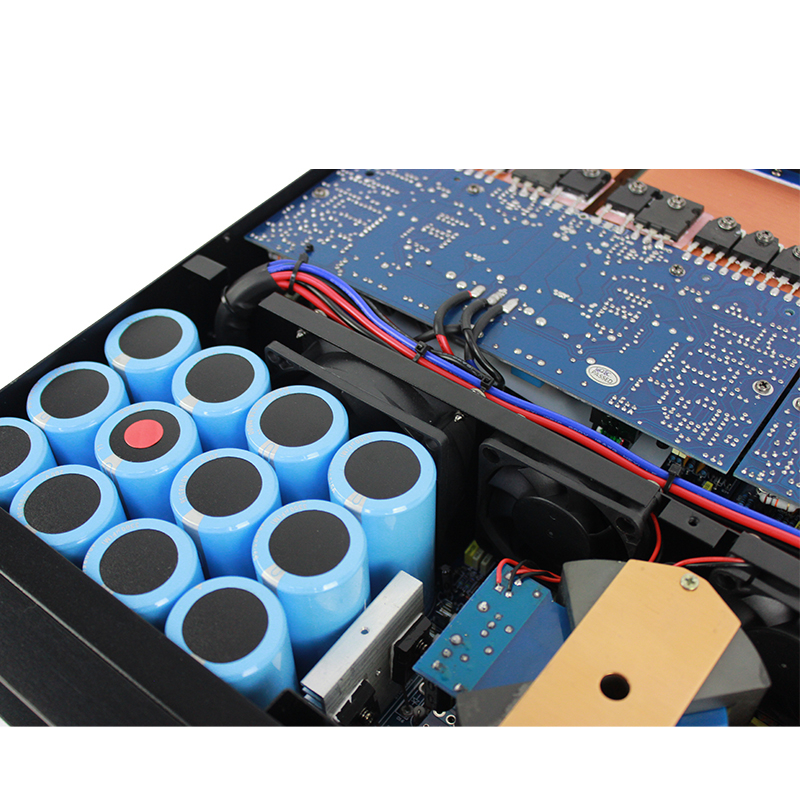

►Use Original Siemens high-quality capacitor 3300uf 200V.

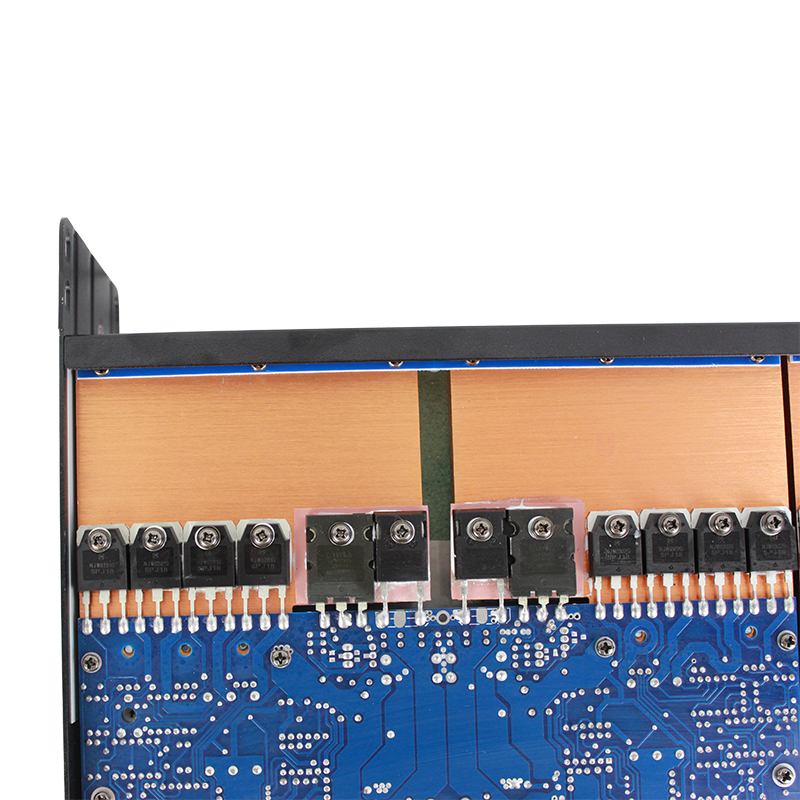

►Use Original ONSEMI transistor.

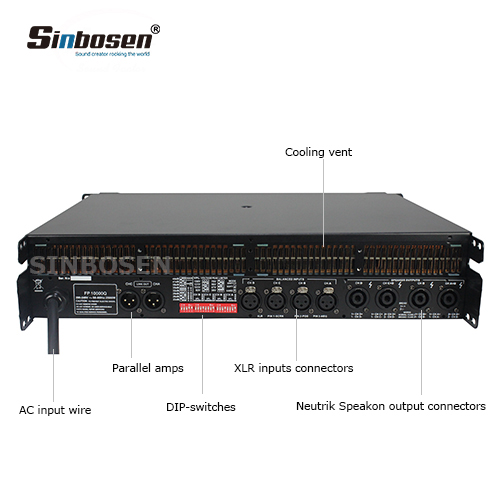

►Neutrik XLR*/speakon connectors.

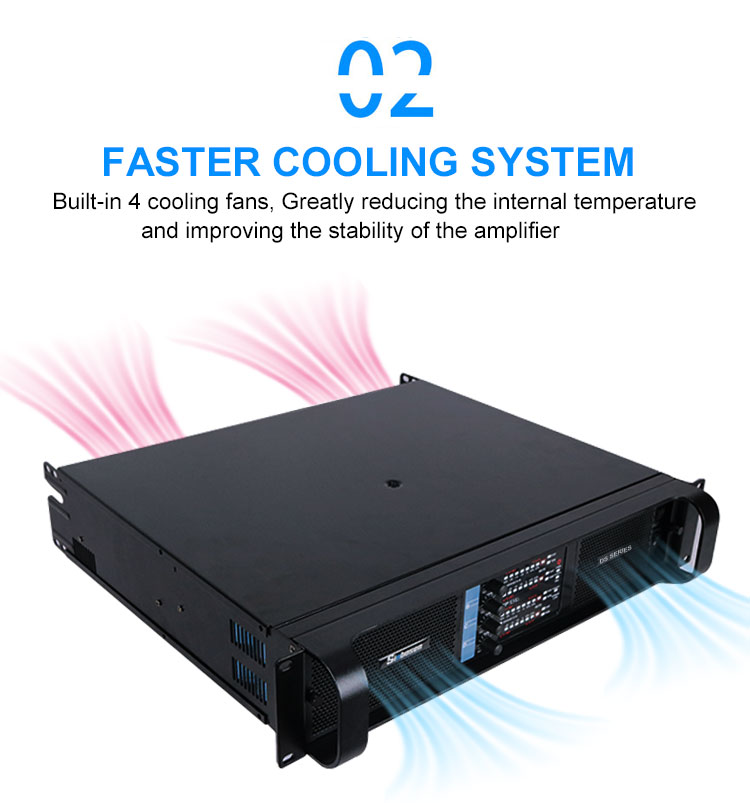

►High quality fans form TAIWAN.

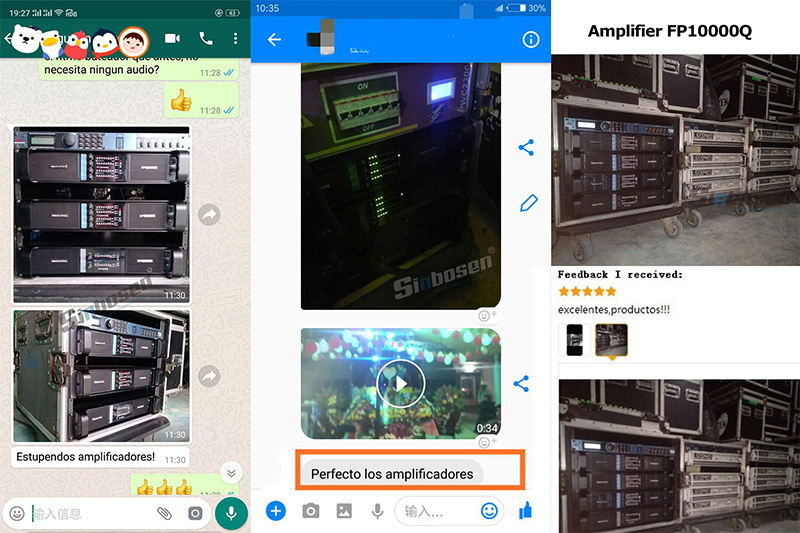

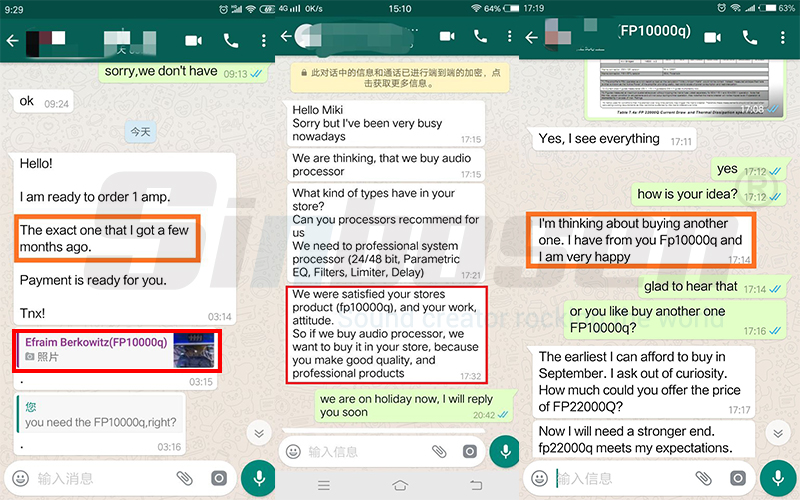

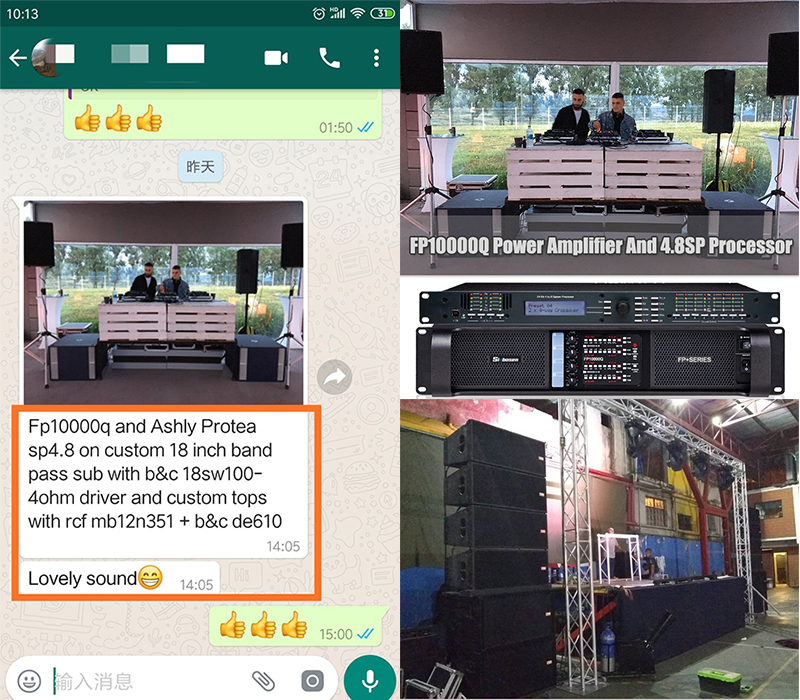

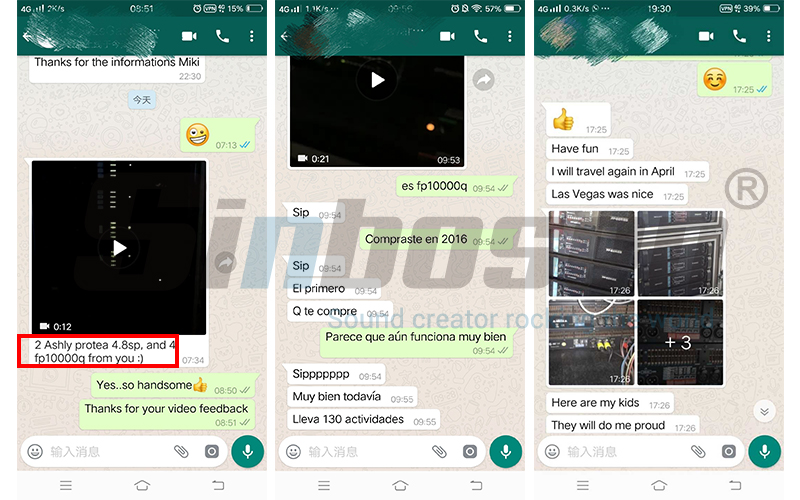

Related feedback--Powerful FP10000Q Amplifier Creates A Powerful Stage!


SUBWOOFER AMPLIFIER 2,400W X 2CH @8ohms 4,400W X 2CH @4ohms		SUBWOOFER AMPLIFIER 2,200W X 4CH @8ohms 4,000W X 4CH @4ohms		LINE ARRAY AMPLIFIER 1,400W X 4CH @8ohms 2,200W X 4CH @4ohms	LINE ARRAY AMPLIFIER 1,700WX4CH @8ohms 2,800WX4CH @4ohms		DSP AMPLIFIER 1,450W X 4CH @8ohms 2,200W X 4CH @4ohms	DSP AMPLIFIER 1,300W X 4CH @8ohms 2,100W X 4CH @4ohms
