Amplificador de potência de comutação AES FIR Classe Td 2U Dsp

Item número.: DSP10000Q

Model: DSP10000Q
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 1,350W X 4CH
4Ω Stereo Power (RMS): 2,100W X 4CH
Certification: CE, ROHS,
Warranty: 3 Years
Special service: OEM service offered

MENSAGEM PDF Formato

Descrição

Sinbosen Audio DSP Series Amplifier
	DSP10000Q	DSP12000Q	DSP20000Q	DSP22000Q
8 ohm Stereo Power (RMS)	1350WX4	1500WX4	2200WX4	2500WX4
4 ohm Stereo Power (RMS)	2100WX4	2800WX4	4000WX4	4650WX4
8 ohm Bridged Power (RMS)	4200WX2	5600WX2	8000WX2	9000WX2
4 ohm Bridged Power (RMS)	5000WX2	7000WX2	9000WX2	15000WX2
Analog input	4 x XLR balance
Analog output	4 x XLR balance
Digital input	1 x AES/EBU;0dBFs=+21dBu
THD+N distortion	≤0.005@1khz 20dBu ≤0.004@1kHz 0dBu
Signal-to-noise ratio(weighted by a)	>117 dB
Maximum input level	＞20 dbu
Maximum input level	14 dbu
Frequency response	20Hz-20kHz;-0.5dBu at 20Hz and 20kHz

Question: Do you know what's the difference between DSP Amplifier and FP Amplifier?
Some users prefer to make amplifier with DSP function in one same machine. Don't need to spare more time to install the extra audio processor. 2 in 1 design make audio system more lighter, simpler to operate. So we create the DSP series based on FP series amplifier.

FEATURE:

►4 Channel Class TD Switching power amplifier
►Create SUPER sound quality
►Control the sound effect by Touch on front 4.3-inch LED display screen
►Or control the sound effect by Computer
►Simple DSP software, no need to install, easy to operate it
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme
►Use Original Siemens high quality capacitor 12pcs 3300uf 200V +4pcs 2200uf 200V
►Use Original ONSEMI transistor
►Neutrik XLR*/Speakon connectors
►High Cooling System, 4 Internal Cooling Fans with 8 Rear Small Fans
►DANTE function is selectable, costs more than 100 USD

DSP PROCESSOR :

1.	48kHz sampling frequency DSP processor, 24-bit A/D and D/A conversion; 4 in 4 out DSP module.

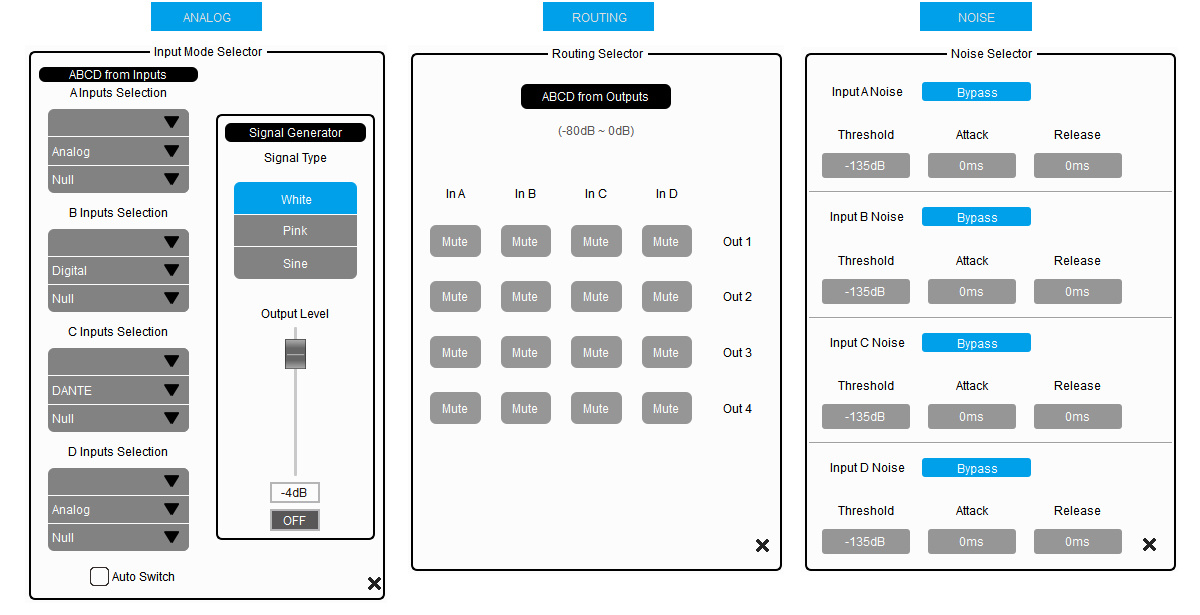

2.	Input modes can be selected as analog input, AES digital signal input, (DANTE function is selectable, costs more than 100 USD), allowing for simultaneous input of different signals. Automatic switching configuration is available, with the option to set signal priority levels.
3.	Output channel temperatures are displayed on the screen for easy monitoring of amplifier temperature status.
4.	Output amplifier protection indicator lights, with the PRO indicator light staying on in amplifier protection mode.
5.	Quick copy function; allows for copying of adjusted parameters to other channels.
6.	Signal generator configuration: white noise; pink noise; sine wave signal.
7.	FIR function configuration for 4 output channels;FIR fractional filtering: Taps can be selected within the range of 256 to 512, with optional attenuation and time window types; FIR parameters can be generated by the machine. itself, or imported from pre-generated FIR files from third-party applications.
8.	One-touch scan for USB devices, network devices; automatically connects upon device detection; Network can be multi-machine calibrated, with up to 250 devices online simultaneously.
9.	2U panel equipped with a 4.3-inch touchscreen, allowing for direct touch adjustment of parameters or connection to a computer for control via PC control software.
10.	Operation panel can store 30 user programs for quick and convenient access.
11.	Device can be locked via software or panel to prevent accidental operation.
12.	All 4 inputs feature 7 independent parametric equalizers, with adjustment range of -15dB to +15dB; equalizer modes can be selected as PEQ, LF, HP, ALLPASS; input configuration includes limiters, noise gates, delay, phase, high-pass, low-pass, input calibration, channel parameter copying, mute, and other functions.
13.	All 4 outputs feature 7 independent parametric equalizers, with gain adjustment range of -15dB to +15dB; equalizer modes can be selected as PEQ, LF, HF, ALLPASS; output configuration includes limiters, delay, phase, high-pass, low-pass, output calibration, channel parameters, mute, FIR, and other functions.

DSP processing 1 xADAU1452 DSP
Parametric EQ	Input with 7-segment parameter equalization Output with 7-segment parameter equalization
Automatic phase correction FIR	Asymmetry, 512Taps, automatic phase correction FIR, perfect compatibility with third-party application software
Equalizer type	All equalization filters can be set to LOW PASS Filter;High Pass Filter;PEQ;All Pass
Equalizer gain	Range:-15dB ~+15dB, step accuracy: 0.1dB
center frequency	Adjustable step accuracy of 1Hz within the 20Hz~20kHz frequency band range
Q value/broadband:	Q value range: 0.3~15, with steps of 0.1
Input&Output Gain	Range: -12dB~+12dB, step accuracy: 0.1dB
High and low pass filtering of IIR frequency division part	Butterworth slope 12/24/48 dB optional Bessel slope 12/24/48 dB optional Linquez Riley slope 12/24/48 dB optional
High pass/low-pass/bandpass filtering of FIR frequency division part	Type: High pass/low-pass/bandpass filter optional Tap range: 256~512, The minimum attenuation can reach -120dB Time window types: Rect/Sinc/Keiser/Hanning/Hamming/Blackman/Nuttal/Sine optional
Noise generator	White/pink noise/sine wave generator, level range: -40dBu~0dBu

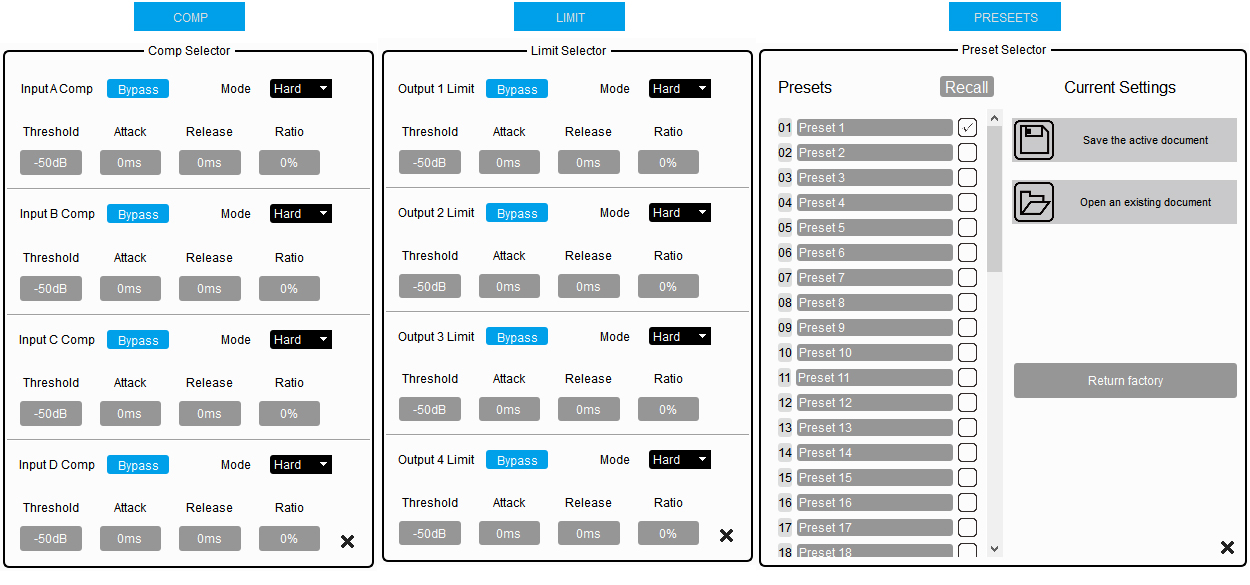

Output COMP voltage limiter	Selectable ratio range: 1.00:1~INF: 1; Inflection point: 0-100% Mode type: hard pressing; Moderate; Soft compression Supply range: -12dBu~+12dBu Start control time: 0.1ms~500ms; Release time: 0.001ms~2000ms
Output peak voltage limit	Threshold range: 20dBu~-10dBu Start control time: 0.1ms~900ms; Release time: 0.04s~6s
ground noise	-90 dBu

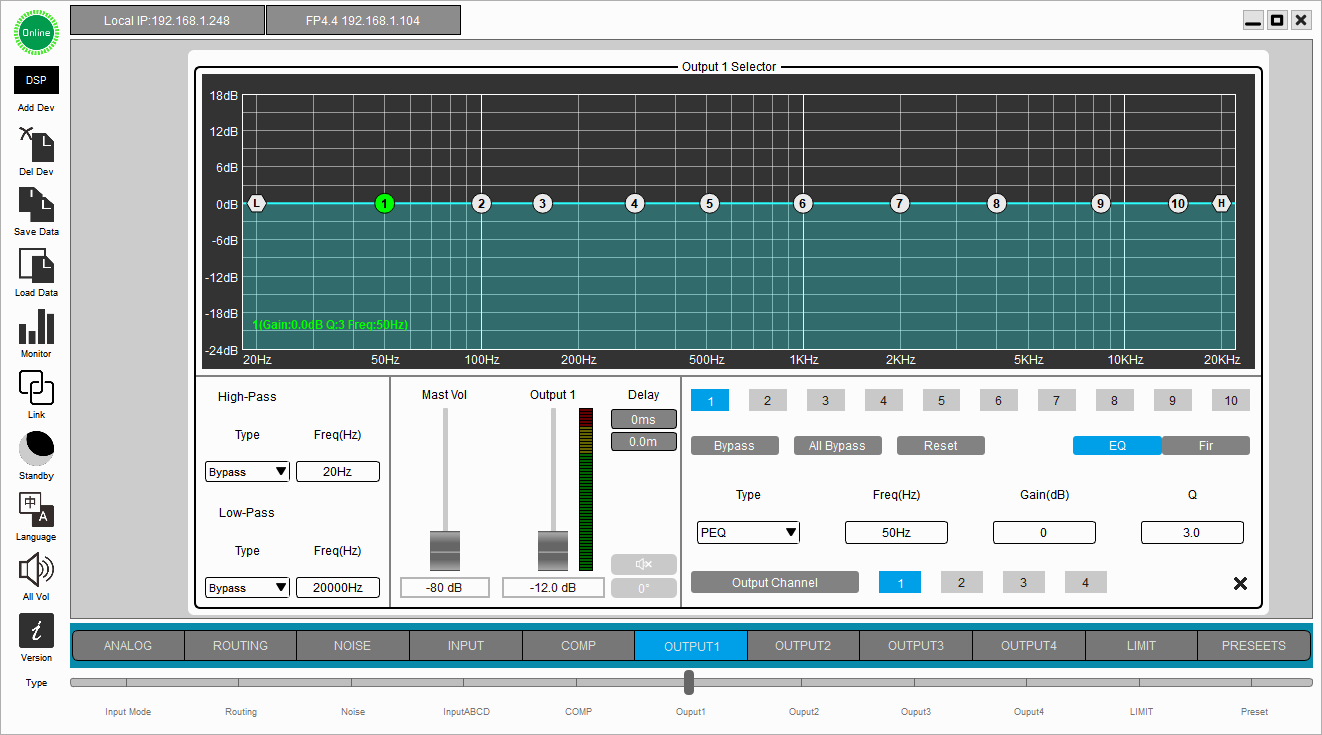

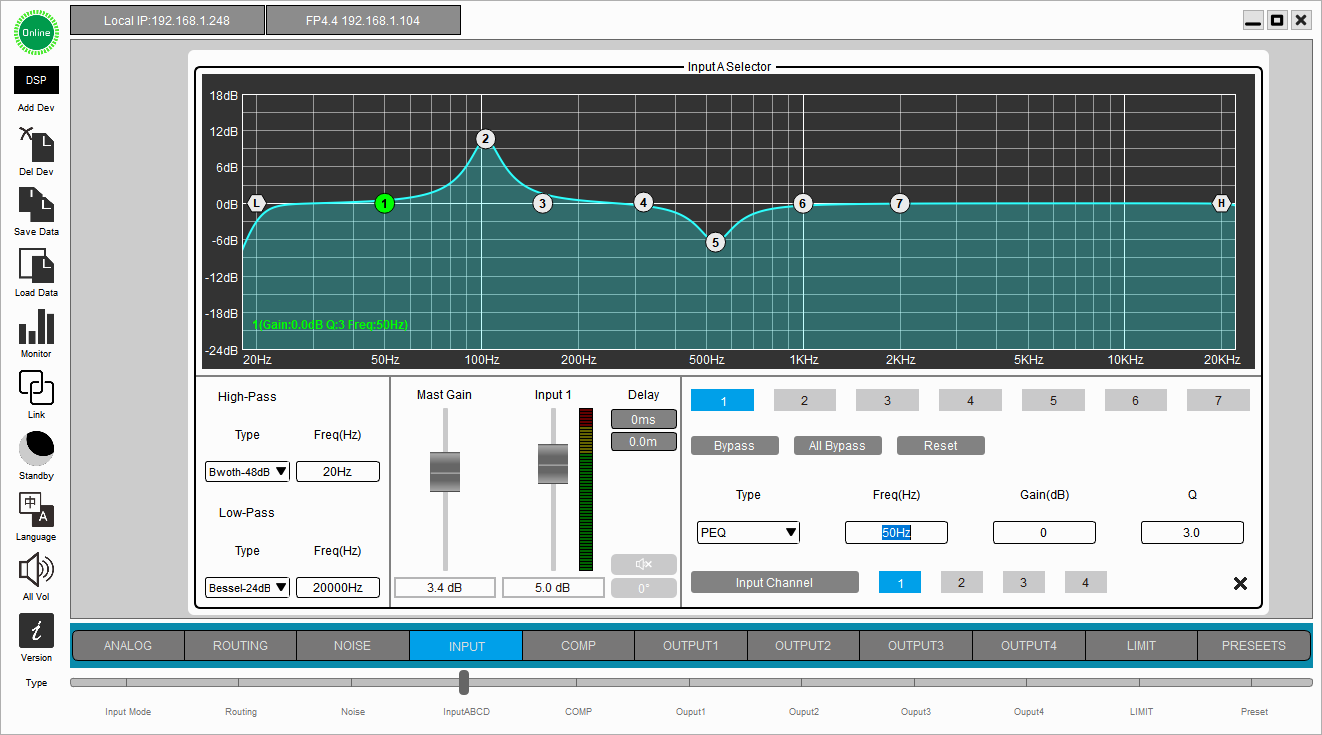

DSP SOFTWARE INTERFACE
